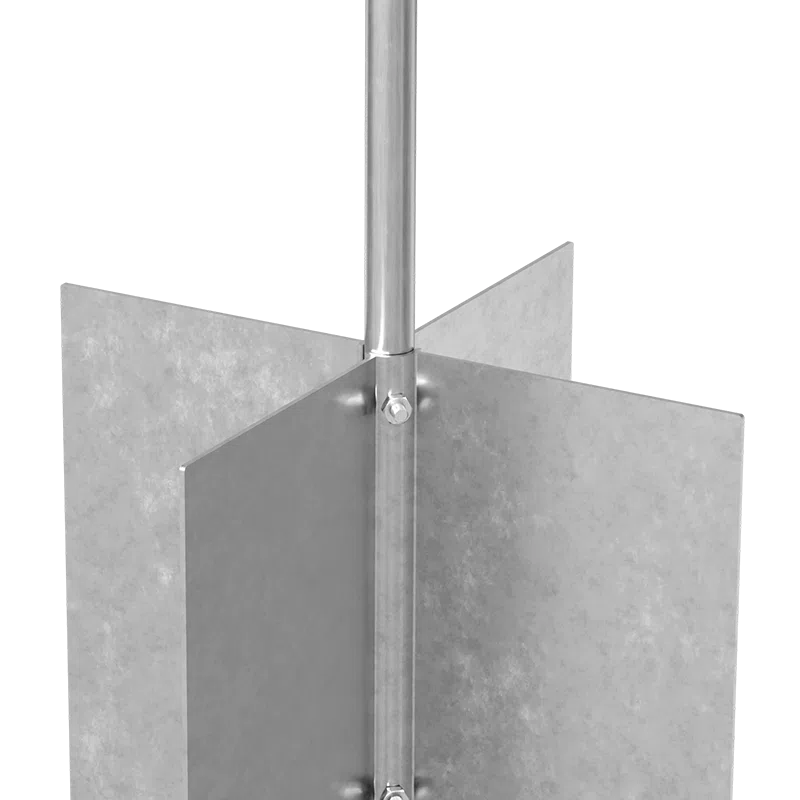

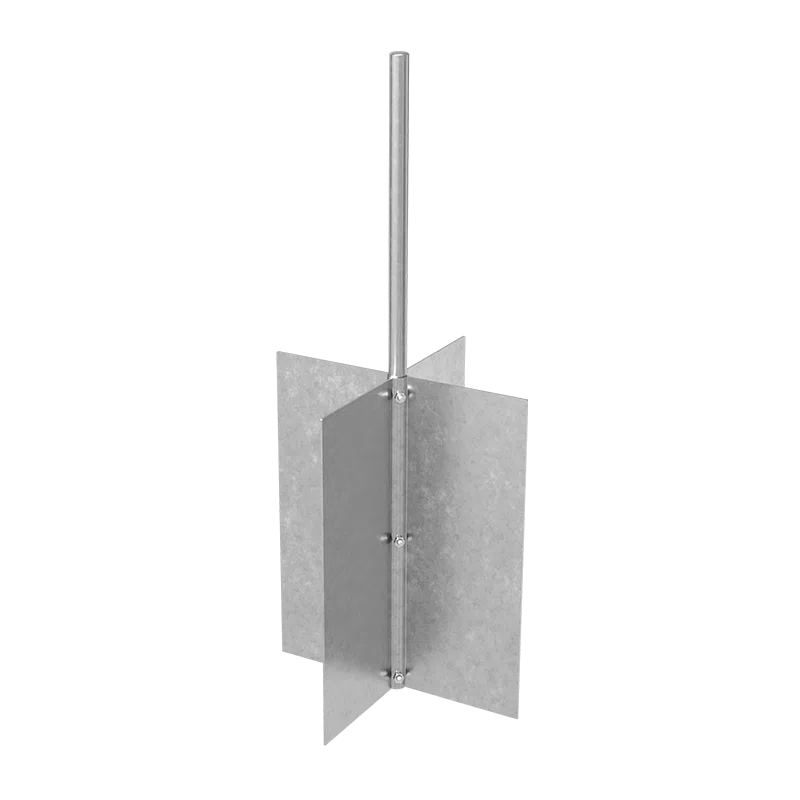

TG-TRHTINOX Stainless Steel Pinwheel
The Total Ground Rehilete is designed to meet the needs of the electrical and telecommunications market. It is a basic and economical stainless steel element that is used in shallower areas to provide a greater ground contact area and increase the efficiency of the ground system, ensuring a grounding with high current dissipation capacity in accordance with EIA/TIA J-STD-607-A and BICSI standards.
Main features
- Designed in the shape of a crosshead by two sheets of high quality and durable stainless steel.
- Greater ground contact area that exponentially increases the overall efficiency of the system.
- Ensures safe grounding with outstanding electrical current dissipation capacity.
- It fully complies with the international EIA/TIA J-STD-607-A and BICSI standards for telecommunications.
- Facilitates preventive maintenance of the terrain, requiring a resistance review every six months.
Detailed technical data
| Brand | Total Ground |
|---|---|
| Category | Grounding |
| Subcategory | Grounding solution |
| Family | Pinwheel-type electrode |
| Model | TG-TRHTINOX |
| Application | Pinwheel-type earth ground electrode with mechanical connection |
| Final height | 700 mm |
| Sheet thickness | 24 gauge (0.569mm) |
| Material | Stainless steel |
| Rod Diameter | 5/8" |
| Weight | 2.18kg |
| Leaf | 400 x 300 mm / 5/8" channel (2 pcs) |
| Screws | 3 points per piece |
| Warranty | 1 year warranty |
